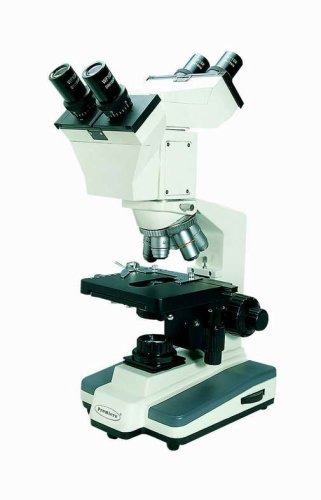

Dual View Microscope MRP-5000D

Dual View Microscope MRP-5000D Reviews

Other Picture

Dual View Microscope MRP-5000D Feature

• 30 degree binocular Seidentopf head, able to rotate 360 degrees
• Pair of 10X widefield eyepieces, interpupillary distance adjustment 55-75mm
• 5 DIN Achromatic parfocal and pacentered objectives, backward mounted - 4X N.A.O.10, 10X N.A. 0.25,
• Magnification - 40X to 1000X
• Focusing stop to prevent objectives and slides from damage

Each of our popular binocular models can be ordered as Dual View Microscopes, ideal for one-on-one teaching. The binocular head is replaced with an adapter fitted to two binocular heads with slide-type interpupillary adjustment and 10X WF eyepieces. All other specifications match the base binocular model.

Features:
- Two binocular heads with slide-type interpupillary adjustment
- Pairs of 10X widefield eyepieces
- 5 DIN Achromatic parfocal and parcentered objectives, backward mounted:
4X (N.A. 0.10),10X (N.A. 0.25), 40XR (N.A. 0.65),60XR (N.A. 0.90),
100XR Oil (N. A. 1.25)
- Magnification: 40X to 1000X
- Focusing stop to prevent objectives and slides from damage
- 140mm x 135mm graduated mechanical stage (range of travel 40 x 80mm)
with lower knobs of coaxial drive
- Spring loaded slide holder
- Abbe condenser NA 1.25 with rack and pinion adjustment
- Iris diaphragm with blue filter
- Field diaphragm offers more light control
- Coaxial coarse and fine focusing tension controls
- Variable intensity halogen illuminator, 6V 20W
- Replacement bulb and fuse, Immersion oil
- Dust cover
- Size: 10 x 8 x 16 1/2
-CE

Replacement lamp: MA07
Shipping weight: 18 lbs.

Optional Upgrade:
20X objective instead of 60X objective
Plan Achromatic objective set
Simple Phase Contrast set-10X, 40X, 100X
Turret Annular Phase Contrast kit-4X,10X, 20X, 40X, 100X
Dark field condenser
